Making Refraction

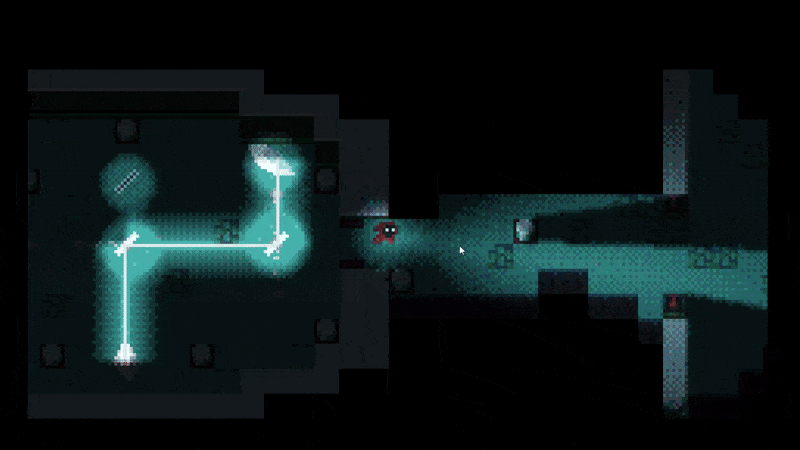

One of my favorite and most challenging projects to date is Refraction. A fast CPU-based lighting engine and renderer.  In this project I extensively used a profiler to find slow portions of the code to optimize. Some of the major optimizations I made were custom low byte data types, multi-threading the lighting calculations, I also precomputed as much as possible and added many early outs. All of these optimizations allowed the lighting engine to run very efficiently even on lower-end computers.

How it works:

1. All objects and tilesets are merged together into one image (the normal maps are also merged into a separate image).
2. For each light, we then go over each pixel in its range and calculate the light's strength, using the normal map to factor in the surface normal.
3. The individual lights strengths are added together, resulting in the total brightness.
4. We then apply any post-processing effects, like dithering and scanlines.

Code Sample

constexpr float degToRad = 0.01745329f; //Precomputed degrees to radians conversion ratio
constexpr float OneOver255 = 0.00392156f; //Precompute 1 / 255 for conversion from 0 - 255 into 0 - 1


//calculate the given lightsource's effect on the current pixel
float Renderer::FindPixelLuminosity(int x, int y, const Light* lightSource)
{
    float result = 0.0f;

    //Determine which algorithm to use based on lightsource type
    switch (lightSource->Type)
    {
        case LightSourceType_Point:
        {
            result = CalculatePointLightContribution(x, y, lightSource);
            break;
        }

        case LightSourceType_Directional:
        {
            result = CalculateDirectionalLightContribution(x, y, lightSource);
            break;
        }

        default:
        {
            assert(!"Encountered a light source of an unknown type.");
            break;
        }
    }

    //Do normal map calculations if light isnt pure dark
    if (result > 0.0f)
    {
        result *= CalcualteNormalMapScalar(x, y, lightSource);
    }

    return result;
}

//calulate the effect of normals on a given pixel
float Renderer::CalcualteNormalMapScalar(int x, int y, const Light* lightSource)
{
    //get normal maps "surface normal" from the r and g component of the normal buffer
    float normalR = normalBuffer->SampleColor(x, y).r;
    float normalG = normalBuffer->SampleColor(x, y).g;

    //if surface is facing camera return early as the normal has no effect on the light here
    if (normalR == 0.0f && normalG == 0.0f)
    {
        return 1.0f;
    }

    //calculate the normals effect on current pixel
    Vector2 pos = Vector2(x, y);
    Vector2 distFromLight = lightSource->position - pos;
    Vector2 distNormalized = distFromLight.Normalize();
    Vector2 normalDir = Vector2(normalR * OneOver255, normalG * OneOver255);
    normalDir *= 2.0f;
    normalDir -= Vector2(1.0f, 1.0f);
    float normalFalloff = -Vector2::DotProduct(distNormalized, normalDir);
    normalFalloff = clamp(normalFalloff, 0.0f, 1.0f);
    return normalFalloff * normalStrength;
}

//calulate the overall contribution of given point lightsource to pixel brightness
float Renderer::CalculatePointLightContribution(int x, int y, const Light* lightSource)
{
    Vector2 dist = Vector2(x, y) -  lightSource->position;
    float distFromConeCenter = sqrt(Vector2::DotProduct(dist, dist)) / lightSource->radius;

    //if the current pixel is outside the lights radius
    if (distFromConeCenter >= 1.0f)
    {
        return 0.0f;
    }

    float distFromConeCenterSquared = distFromConeCenter * distFromConeCenter;
    return = lightSource->intensity * pow((1.0f - distFromConeCenterSquared), 2.0f) / (1.0f + lightSource->radialFalloff * distFromConeCenter);
}

//calulate the overall contribution of given directional lightsource to pixel brightness
float Renderer::CalculateDirectionalLightContribution(int x, int y, const Light* lightSource)
{
    //convert angle from degrees to radians
    float angleRadians = degToRad * -lightSource->angle;
    float minAngleRadians = degToRad * -lightSource->minAngle;
    float maxAngleRadians = degToRad * -lightSource->maxAngle;

    //find edges of the viewcone
    Vector2 leftEdge = Vector2(-sinf(minAngleRadians), cosf(minAngleRadians));
    Vector2 rightEdge = Vector2(-sinf(maxAngleRadians), cosf(maxAngleRadians));
    float dRadius = Vector2::Length(rightEdge - leftEdge);

    //find the viewcones direction and tangent lines
    Vector2 emissionDirection = Vector2(-sinf(angleRadians), cosf(angleRadians));
    Vector2 emissionTangent = Vector2(-emissionDirection.y, emissionDirection.x);
    Vector2 toPixel = Vector2(x, y) -  lightSource->position;

    //find and check if current pixel is inside the lights viewcone
    float dot = Vector2::DotProduct(toPixel, emissionDirection);
    if (dot <= 0.0f)
    {
        return 0.0f;
    }

    float distanceSq = Vector2::DotProduct(toPixel, toPixel);
    float distScalarSq = distanceSq / pow(lightSource->radius, 2.0f);

    //leave early if the current pixel is outside the light sources radius
    if (distScalarSq >= 1.0f)
    {
        return 0.0f;
    }

    float radius = dot * dRadius;
    float distScalar = sqrt(distScalarSq);

    float emitterDistance = lightSource->intensity * pow((1.0f - distScalarSq), 2.0f) / (1.0f + lightSource->radialFalloff * distScalar);
    float arcDistance = radius - abs(Vector2::DotProduct(emissionTangent, toPixel));
    arcDistance = clamp(arcDistance, 0.0f, radius);

    return = emitterDistance * (arcDistance * lightSource->frustumWeight);
}

//Loop over every pixel and calculate each pixels rgb value
void Renderer::RenderLightingPass()
{
    const int xSize = outputBuffer->size.x;
    const int ySize = outputBuffer->size.y;

    //create a threadpool
#pragma omp parallel
    {
        //create tasks for threads, make each take one index of the next two loops,
        //dont have them wait for other threads to finish
#pragma omp for collapse(2) nowait
        //loop through x then y because our data is column major
        //this gives better cache coherence
        for (int x = 0; x < xSize; ++x)
        {
            for (int y = 0; y < ySize; ++y)
            {
                float intensityR = 0.0f;
                float intensityG = 0.0f;
                float intensityB = 0.0f;

                for (int i = 0; i < numLights; ++i)
                {
                    //see if pixel is lit before running expensive lighting calculations
                    //this saves time over running lighting calculations on unlit pixels
                    if (CalculateIfPixelIsLit(x, y, i) != true)
                    {
                        continue;
                    }

                    Light* lightSource = &lights[i];
                    float lightMultiplier = FindPixelLuminosity(x, y, lightSource);

                    if (lightMultiplier <= 0.0f)
                    {
                        continue;
                    }

                    //convert from 0 - 255 into 0 - 1
                    float R_F32 = lightSource->color.GetRed() * OneOver255;
                    float G_F32 = lightSource->color.GetGreen() * OneOver255;
                    float B_F32 = lightSource->color.GetBlue() * OneOver255;

                    //simulate fog by multiplying by volumetric intesity
                    lightMultiplier *= lightSource->volumetricIntensity;

                    //multiply the intensity of the light by the underlying pixel color
                    intensityR += lightMultiplier * R_F32;
                    intensityG += lightMultiplier * G_F32;
                    intensityB += lightMultiplier * B_F32;
                }

                //store result in pixel array
                //sent to gpu and cleared in other function after frame is finished
                lightR[x][y] = intensityR;
                lightG[x][y] = intensityG;
                lightB[x][y] = intensityB;
            }
        }
    }
}
